Solid Oak Under-Desk Drawer Unit Installation Guide

Safety First

  • Use caution when handling heavy or bulky components to prevent injury or damage to yourself and the product.
  • Always wear protective equipment, such as gloves or safety glasses, when using power tools to avoid accidents.
  • Do not over-tighten screws or bolts, as this can damage the components or compromise the stability of the product.
  • Please follow the provided instructions carefully to ensure proper assembly and use of the product.
  • Keep small parts away from children or pets, as they can be a choking hazard.
  • Inspect the product for any defects or damages before assembly, and contact us if you notice any issues.
  • Please do not modify the product or use it for any purpose other than its intended use.
  • Use caution when working with sharp tools or edges, and keep them away from children and pets.
  • If you are uncertain about any aspect of the assembly process, seek assistance from a professional or contact us for further assistance.
  • Do not sit or stand on the product.
  • This product is not intended to support people or heavy objects. Avoid placing excessive weight to prevent damage and instability. MAX 20 Kg.
solid oak desk height three drawer unit installation guide max weight

Instructions

Step 1. Please read the safety guidelines stated above before you start to assemble the product. Insert the metal dowels in the bottom and tighten them with a cross-head screwdriver until the threaded part is completely hidden. Do no over tighten the fittings.

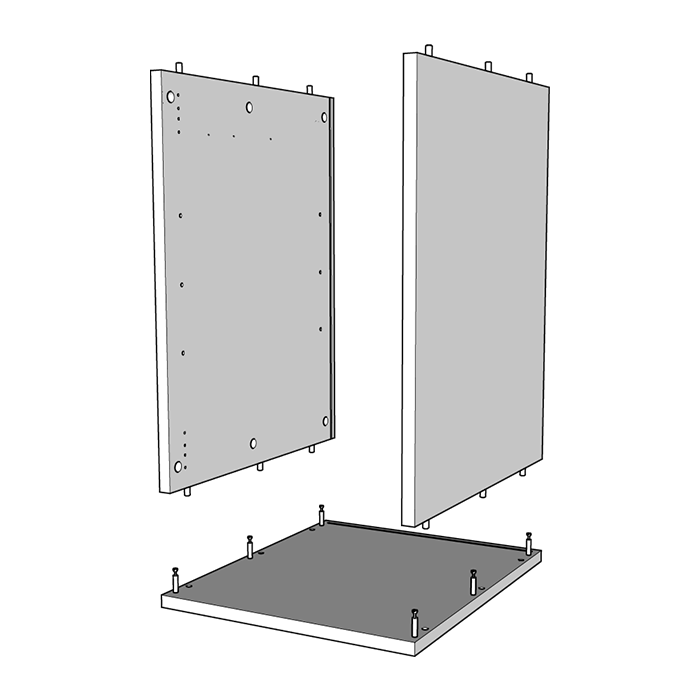

Step 2. Connect the two side panels with the bottom panel making sure that all the metal dowels are correctly aligned with the corresponding side panels.

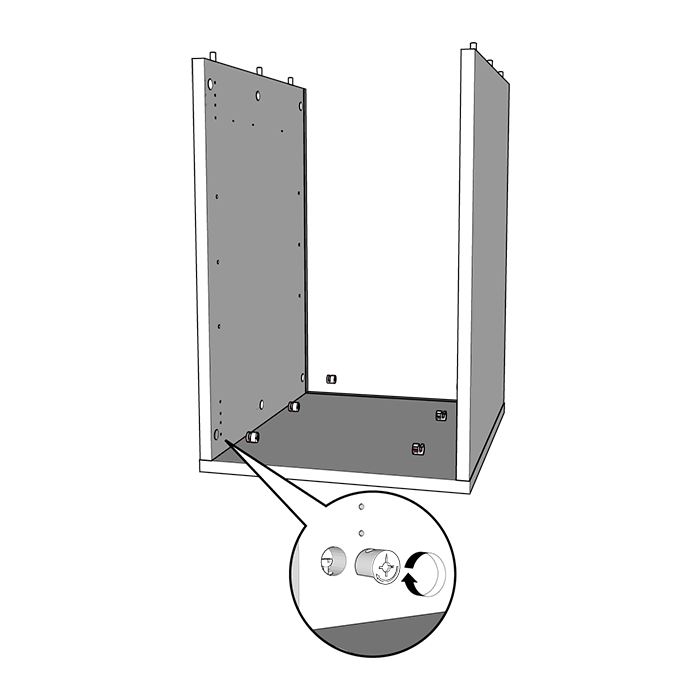

Step 3. Insert the cam locks in the side panel holes, making sure they are flush with the panel surface and tighten them by rotating them clockwise with a cross-head screwdriver.

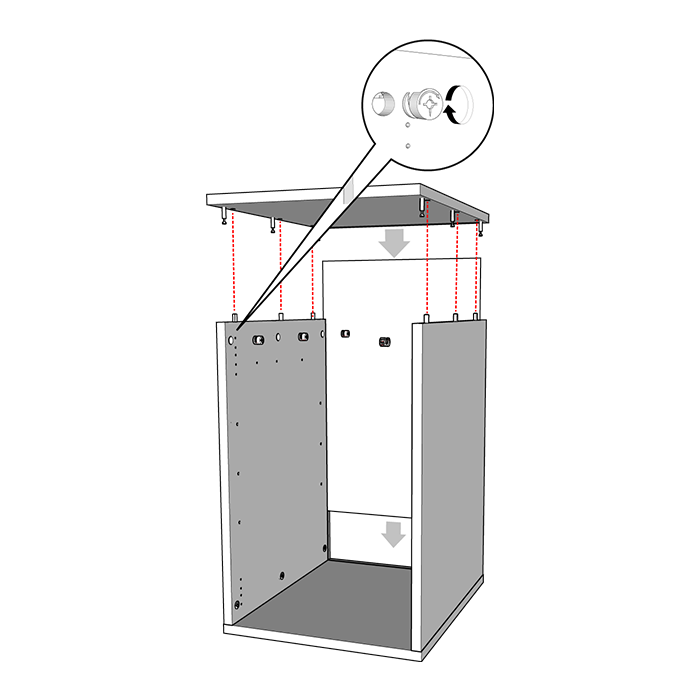

Step 4. The back panel slides into grooves in the sides and top shelf. Orient it with the nice side facing inside of the cabinet, and slide it into the grooves as shown. Fit the top panel by gently pushing it into place, making sure all the metal dowels are correctly aligned with the corresponding holes and lock it in place using the cam locks provided.

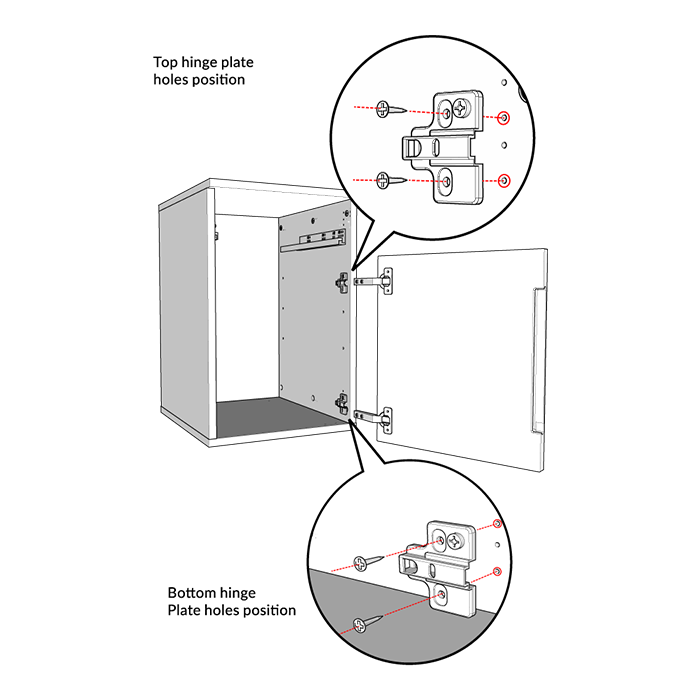

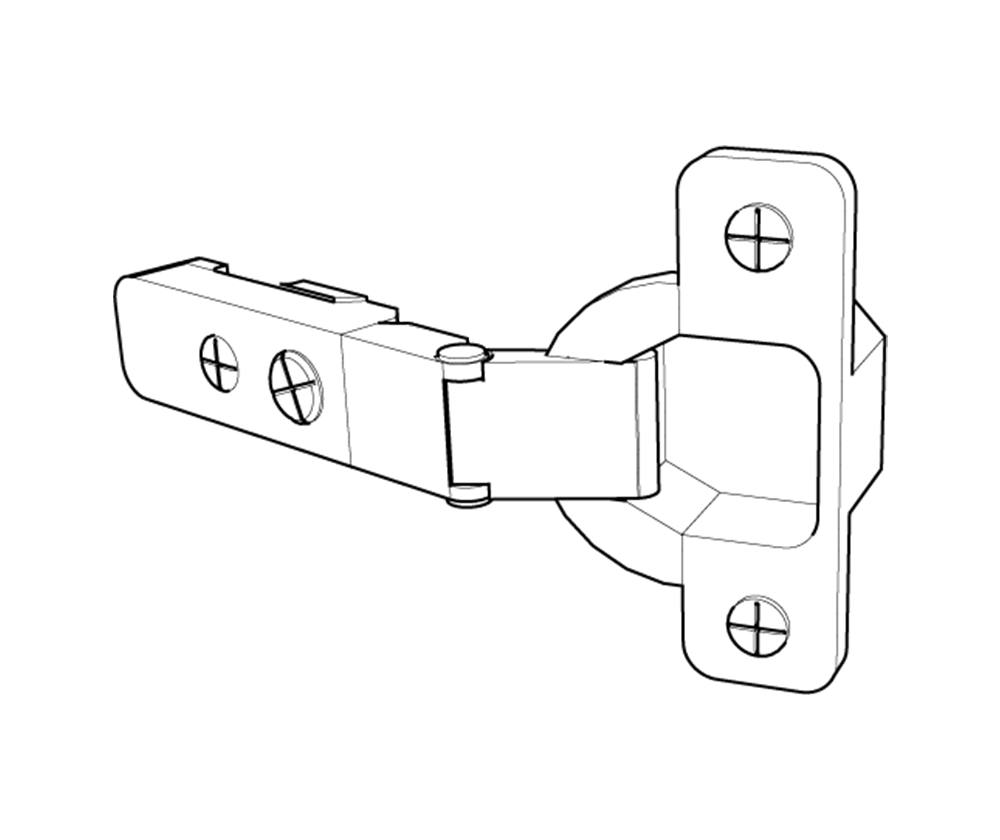

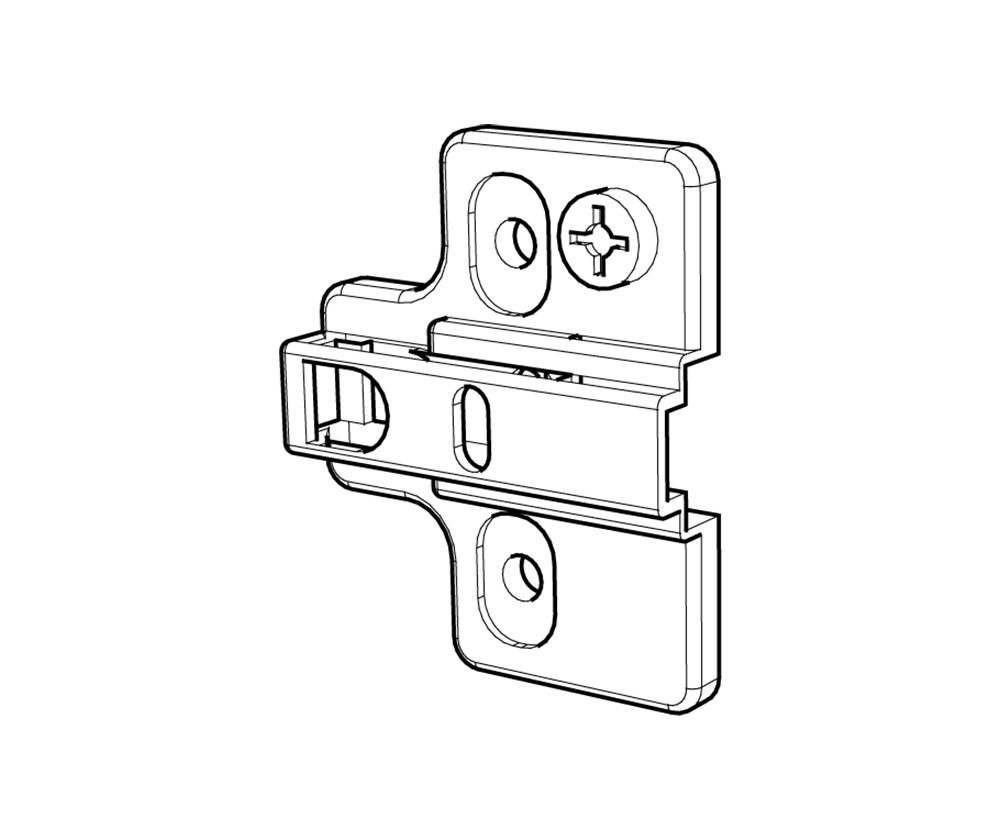

Step 5. Align the top hinge plate holes with the side panel pre-drilled holes as shown in the above diagram. Secure the hinge plate in place with the provided screws. Repeat the process for the bottom hinge plate.

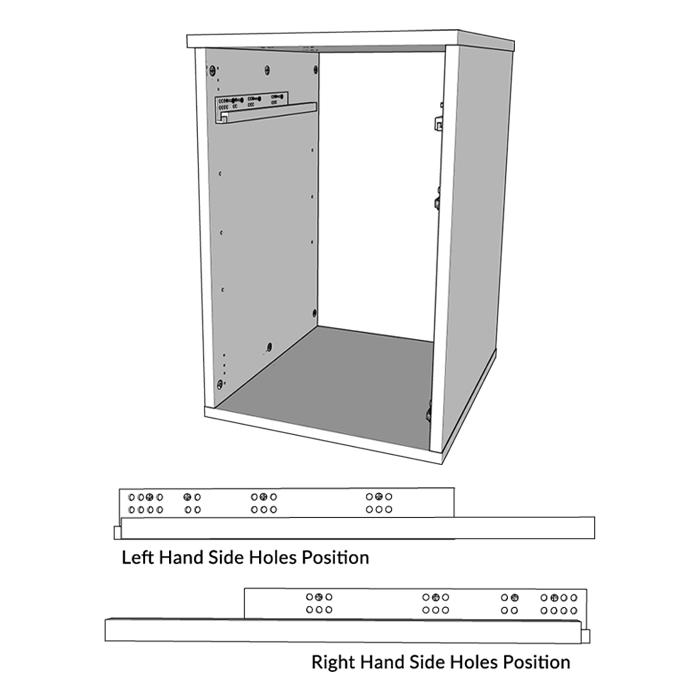

Step 6a. Fit the drawer slides using the hole pattern in the image and fitting them to the side panels pre-drilled holes.

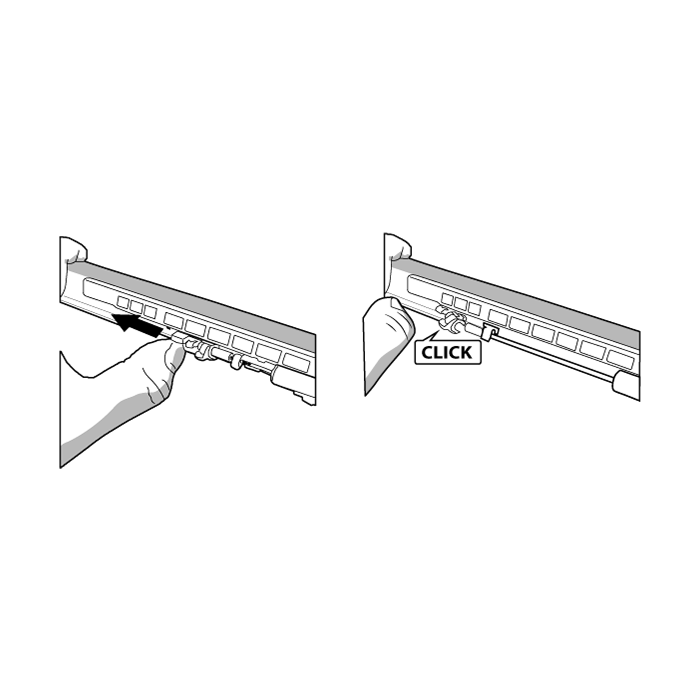

Step 6b. Make sure the soft close mechanism is in the correct extended position before installing the drawers. Here's how it should be.

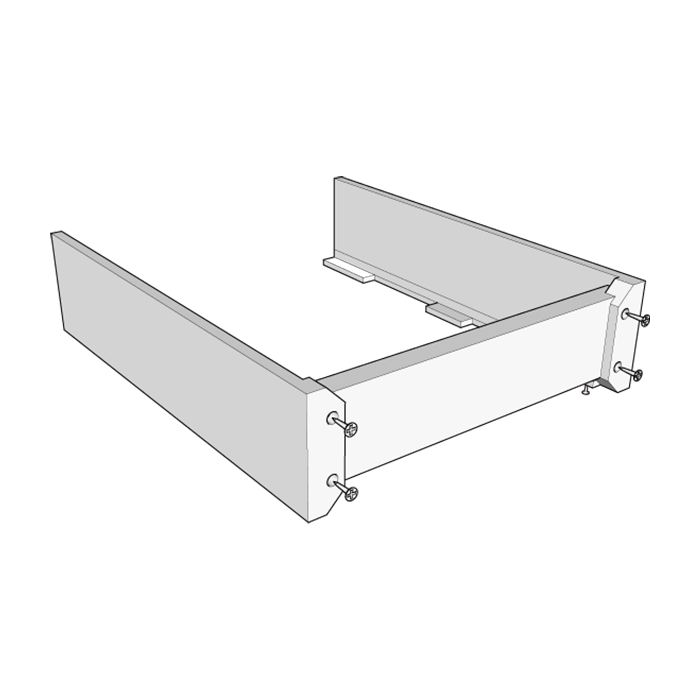

Step 7a. Attach the drawer sides to the drawer back panel with the provided screws.

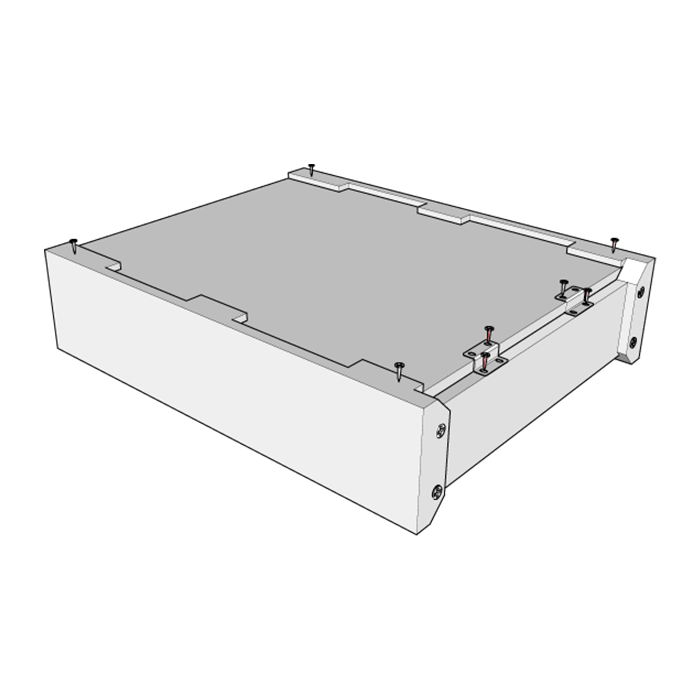

Step 7b. Attach the bottom panel with the provided screws and secure it to the back with the drawer back brackets. Holes on the bottom panel and back panel are pre-drilled.

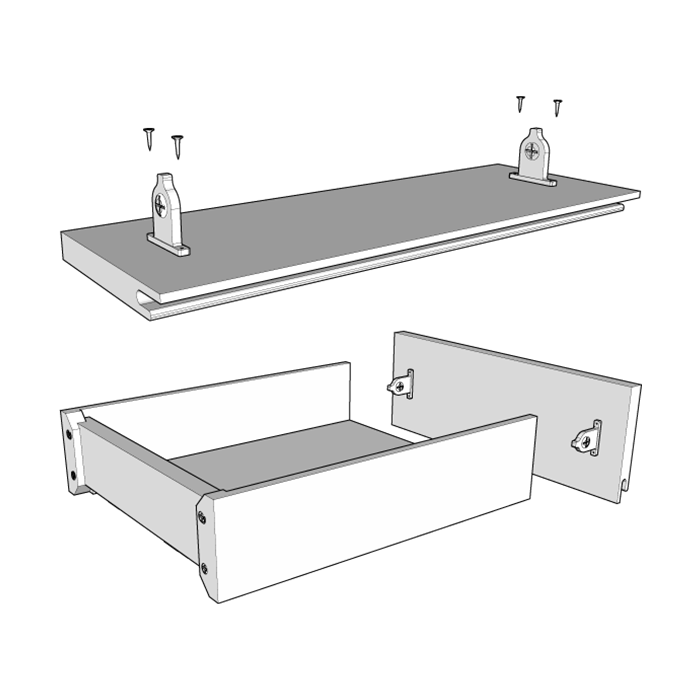

Step 8a. Attach the drawer brackets to the drawer front panel with the provided screws. The drawer front panel is pre-drilled in the correct positions. Attach the drawer front panel to the drawer assembly by aligning the drawer front brackets with the drawer sides and push forward until the front panel clicks into place.

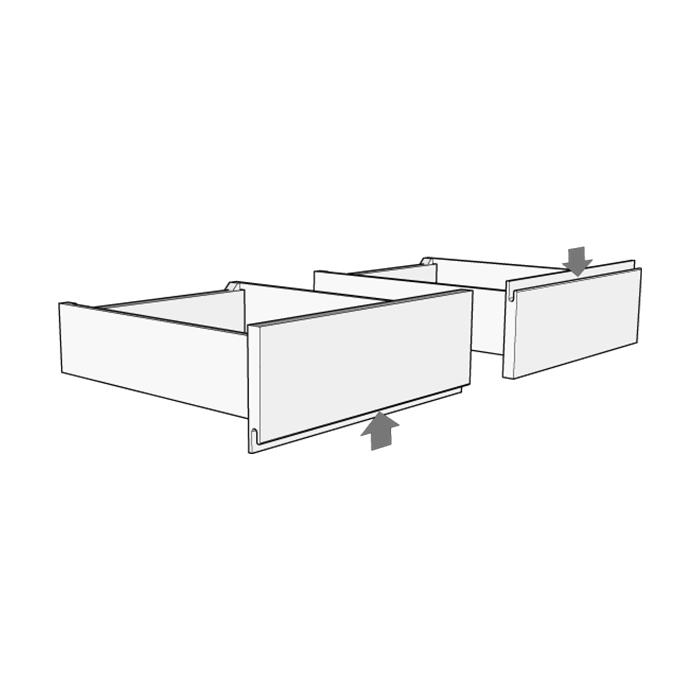

Step 8b. The drawer front is designed to be fitted with the drawer pull positioned either upwards or downwards.

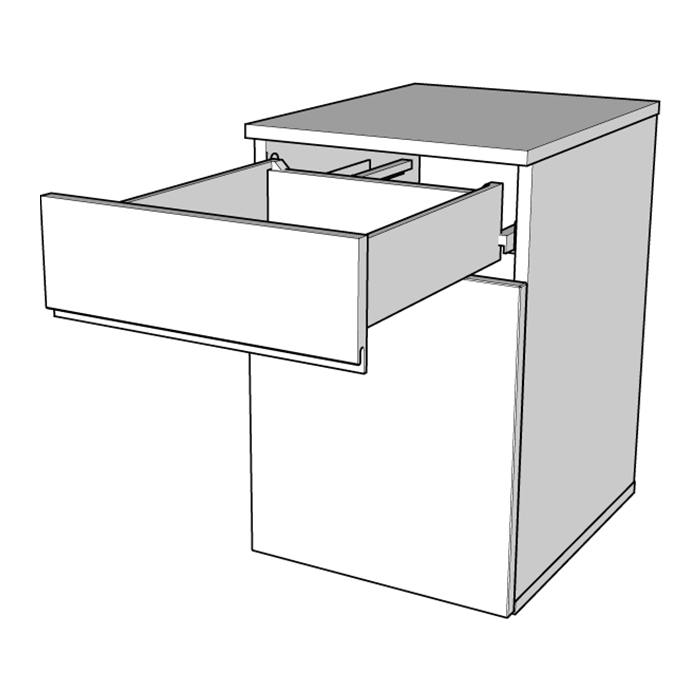

Step 9. Insert the completed drawer assembly into the cabinet assembly, by positioning the drawer correctly onto the drawer runners and pushing forward.

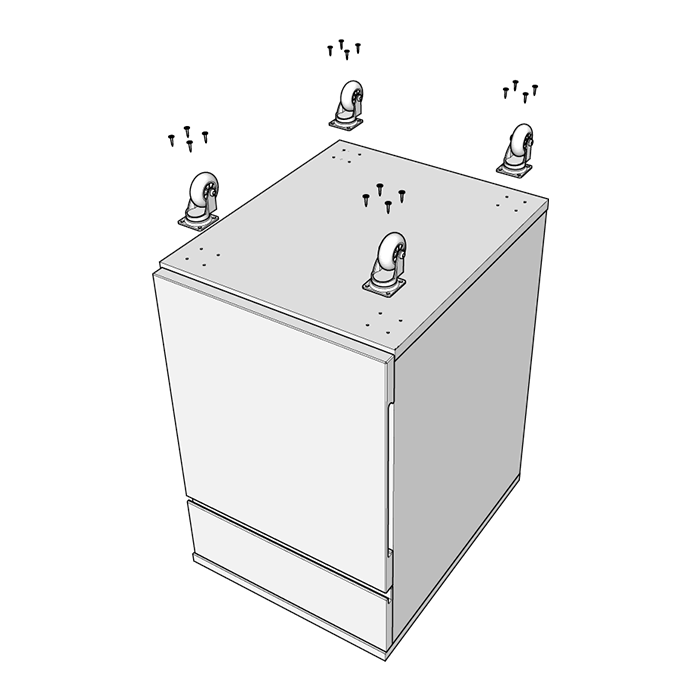

Step 10. Attach the wheels at the bottom of the cabinet.

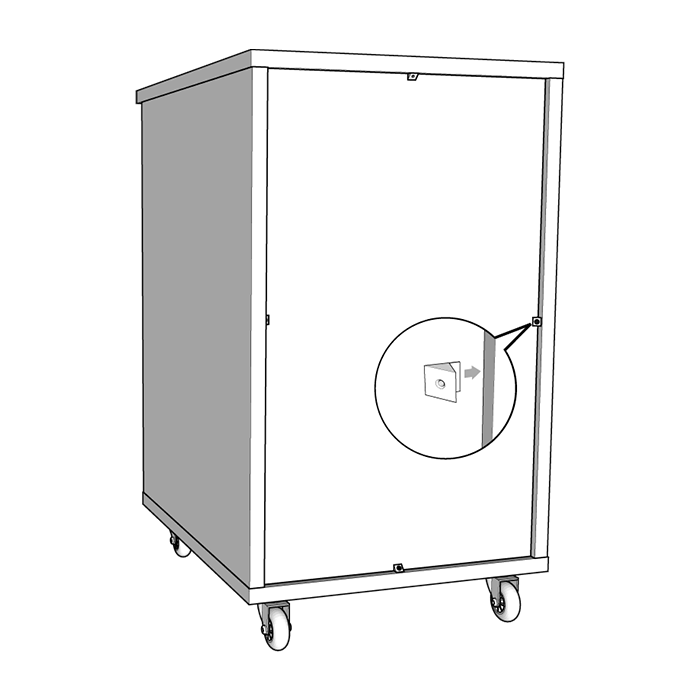

Step 11. Insert the four back panel connectors in the side panel groove and secure them in place by tightening the provided screw. Before tightening make sure there are no gaps between the connector and the inside corner of the back panel and they are evenly distributed as in the above image.

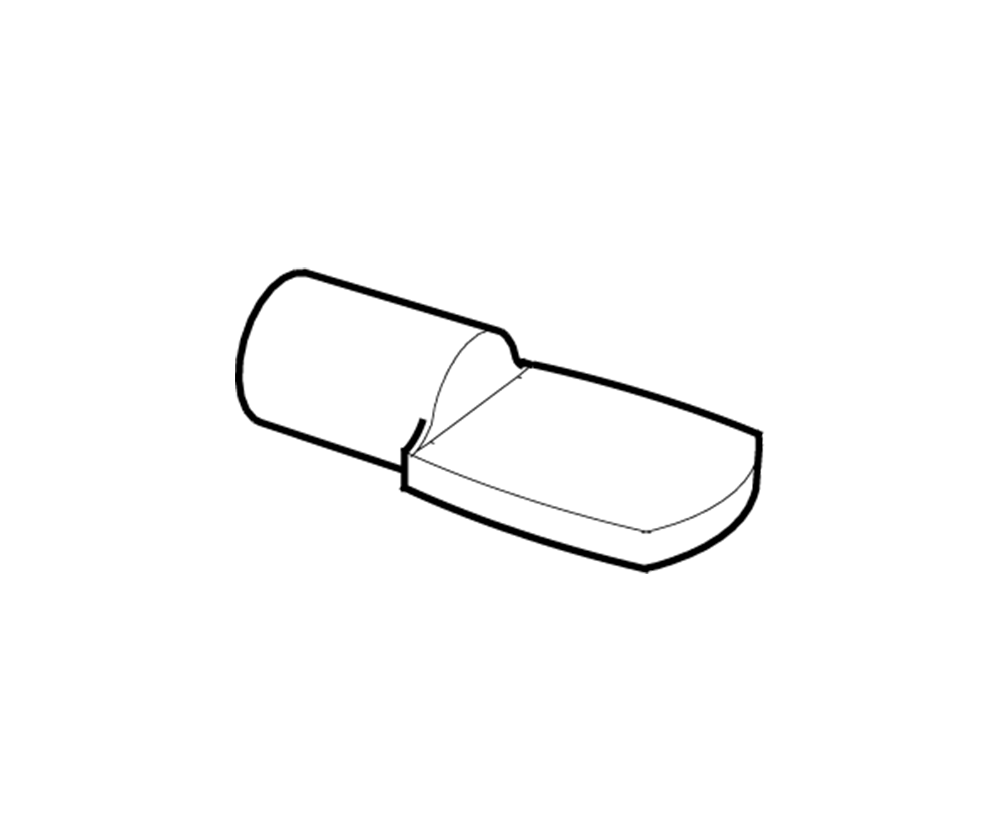

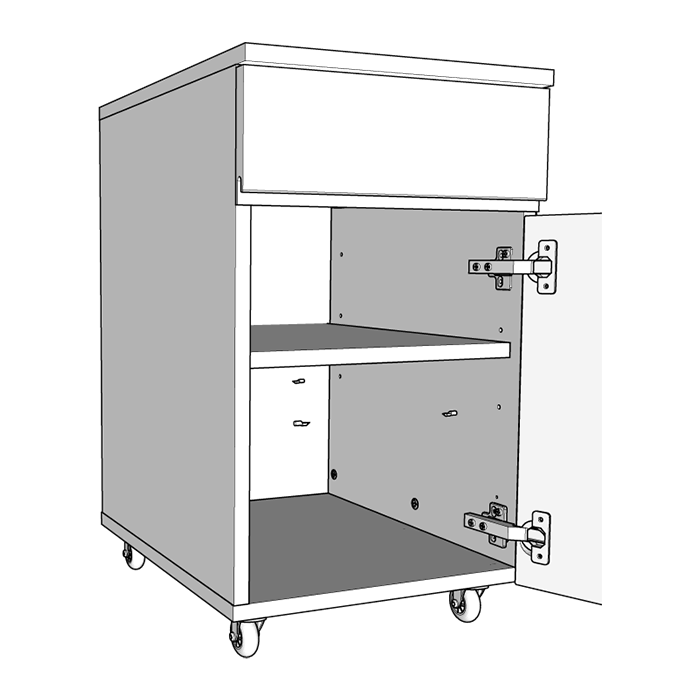

Step 12. Insert the shelf support pins to set the shelf height position and put the shelf in place.

Now, sit back, relax and enjoy your new purchase!
